Series 587.50-.60

Design

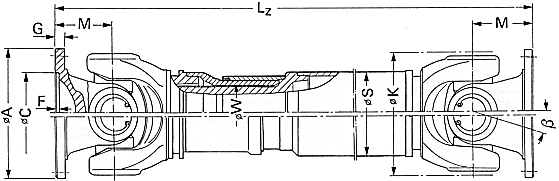

0.01 with length compensation, tubular design
0.02 with large length compensation, tubular design
0.03 without length compensation, tubular design
9.01 with length compensation, short design
9.02 with length compensation, short design
9.03 with length compensation, short design
9.04 without length compensation, double flange shaft design

0.01
587.55
587.60

0.02
587.50

	Standard flange connection	Dowel pin connection according to DIN 15451

	8-hole flange	8-hole flange

0.03

9.01
9.02
9.03

9.04

Series 587.50-.60

Shaft size			587.50			587.55		587.60
TCS		kNm	43			52		57
TK		kNm	33			40		44
TDW		kNm	13			18		23
LC		-	1,76			7,6		24,8
Deflection angle	ß	°	24	24	24	20	20	20	20
Flange-ø	A	mm	225**	250**	250***	250***	285**	285***	285**
Rotation-ø	K	mm	215	215	215	250	250	265	265
	B 1)	mm	196	118	118	218	245	245	245
	BS 1)	mm	-	-	214	214	-	240	-
	C 2)	mm	140	140	140	140	175	175	175
	F 3)	mm	4,4	5,4	5,4	5,5	6,0	6,0	6,0
	G	mm	15	18	18	18	20	20	20
	H 4)	mm	16,1	18,1	18,1	18,1	20,1	20,1	20,1
	HS 4.1)	mm	-	-	25	25	-	28	-
	I 5)	-	8	8	8	8	8	8	8
	IS 5.1)	-	-	-	4	4	-	4	-
	M	mm	108	108	108	125	125	135	135
	S	mm	144 x 7	144 x 7	144 x 7	168,8 x 7,3	168,8 x 7,3	167,7 x 9,8	167,7 x 9,8
	W 7)	-	90 x 2,5	90 x 2,5	90 x 2,5	115 x 2,5	115 x 2,5	115 x 2,5	115 x 2,5

TCS
TK

TDW
Lc

*
**

***

Functional limit torque *
Catalogue torque *
(Friction tight flange without dowel pins have a lower
transmittable torque)
Fatigue torque *
Bearing capacity factor *

Explanations see Selection of cardan shafts
If the permissible catalogue torque
TK is to be fully utilized, the flange connection for example
with dowel pins must be reinforced.
With dowel pin connection acc. to DIN standard 15451
ß = max. deflection angle per joint

1) Tolerance +- 0,1 mm
2) Spigot fit H7
3) Effective spigot depth
4) Tolerance + 0,2 mm
4.1) Fit H12
5) Number of flange holes (Standard flange connection)
5.1) Number of flange holes(Dowel pin connection)
7) Involute spline DIN 5480

Length dimensions * weights * moments of inertia * torsional stiffness

Design	Shaft size		587.50									587.55		587.60
0.01	Lz min	mm	-			-			-			840	840	870
	La	mm	-			-			-			100	100	100
	G	kg	-			-			-			118	122	132
	GR	kg	-			-			-			29,1	29,1	38,2
	Jm	kgm²	-			-			-			0,657	0,737	0,950
	JmR	kgm²	-			-			-			0,190	0,190	0,239
	C	Nm/rad.	-			-			-			8,7 x 10	8,7 x 10	9,6 x 10
	CR	Nm/rad.	-			-			-			19,4 x 10	19,4 x 10	24,3 x 10
0.02*	Lz min	mm	800			800			800			960	960	990
	La min	mm	110			110			110			200	200	200
	G	kg	86			89			89			155	159	170
	GR	kg	23,7			23,7			23,7			29,1	29,1	38,2
	Jm	kgm²	0,325			0,361			0,631
	JmR	kgm²	0,111			0,111			0,111			0,190	0,190	0,239
	C	Nm/rad.	5,29 x 10			5,29 x 10			5,29 x 10
	CR	Nm/rad.	11,33 x 10			11,33 x 10			11,33 x 10			19,4 x 10	19,4 x 10	24,3 x 10
0.03	Lf	mm	540			540			540			610	610	640
	G	kg	72			73			73			88	92	103
	GR	kg	23,7			23,7			23,7			29,1	29,1	38,2
	Jm	kgm²	0,270			0,306			0,306			0,547	0,627	0,84
	JmR	kgm²	0,111			0,111			0,111			0,190	0,190	0,239
	C	Nm/rad.	7,2 x 10			7,2 x 10			7,2 x 10			9,8 x 10	9,8 x 10	11,5 x 10
	CR	Nm/rad.	11,33 x 10			11,33 x 10			11,33 x 10			19,4 x 10	19,4 x 10	24,3 x 10
9.01	Lz min	mm	-			-			-			815	815	845
	La	mm	-			-			-			100	100	100
	G	kg	-			-			-			116	120	130
	Jm	Nm/rad.	-			-			-			0,64	0,72	0,93
	C	Nm/rad.	-			-			-			8,8 x 10	8,8 x 10	9,7 x 10
9.02	Lz	mm	-			-			-			780	780	810
	La	mm	-			-			-			70	70	70
	G	kg	-			-			-			111	115	125
	Jm	kgm²	-			-			-
	C	Nm/rad.	-			-			-
9.03**	Lz	mm	550	600	650	550	600	650	550	600	650	720	720	750
	La	mm	60	75	90	60	75	90	60	75	90	65	65	65
	G	kg	61	65	68	62	66	69	62	66	69	109	113	126
9.04	Lf	mm	432			432			432			500	500	540
	G	kg	56			59			59			81	90	102

Lz min
La
Lf min
Lz + La
G
GR
Jm
JmR
C
CR

shortest possible compressed length
Length compensation
shortest fixed length
max. operating length
Weight of shaft
Weight per 1 m tube
Moment of inertia
Moment of inertia per 1 m tube
Torsional stiffness or shaft without tube
Torsional stiffness per 1 m tube

* Larger length compensation on request
** This shaft size 587.50 can be supplied in 3 standard lengths.

Flange bolt connections are also supplied on request.
For summary see Flange boltings.

The universal shafts can be supplied with the flange of the next larger size on request.
