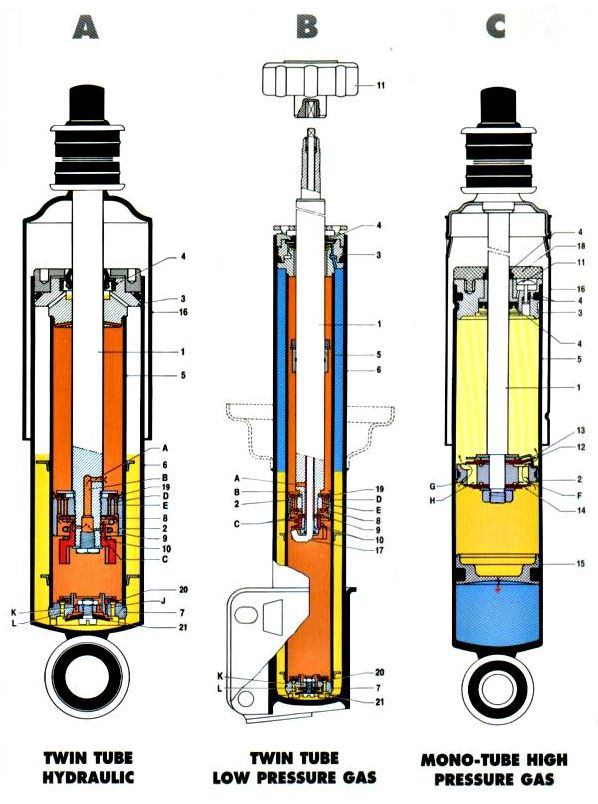

Koni Shock Absorber Components - Large
|
| 1 |
Piston
rod |
| 2 |
Piston |
| 3 |
Piston rod
guide |
| 4 |
Piston rod
seal |
| 5 |
Inner
Cylinder |
| 6 |
Reservoir
tube |
| 7 |
Foot
valve | |
| 8 |
Bypass
valve |
| 9 |
Bypass
spring |
| 10 |
Adjusting
nut |
| 11 |
Adjusting
knob |
| 12 |
Adjusting
detent |
| 13 |
Compression valve
assembly |
| 14 |
Rebound valve
assembly | |
| 15 |
Floating
piston |
| 16 |
Dust
cover |
| 17 |
Adjusting
rod |
| 18 |
Dust
cap |
| 19 |
Non return
valve |
| 20 |
Non return
valve |
| 21 |
Valves | |
| A, B, C, D, E, F, G, H, J, K and L:
Various orifices |
|
|
|
|
|
