Drive Shafts


DANA Industrial Drive Shafts Catalogue

Technical directions for application
tt  back to Table of contents

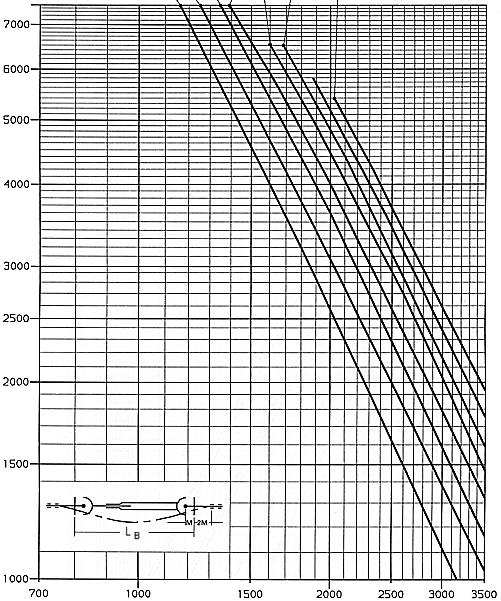

Determination of the critical bending speed depending on the respective operating length

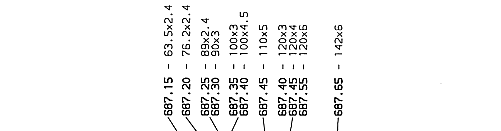

Series 687


Example: 687.45 - 110 x 5: Joint size 687.45, tube outer dia. 119 mm, wall thickness 5 mm
