DANA Industrial Drive Shafts Catalogue

Data Sheets

tt back to Table of contents

Series 330
Quick release couplings

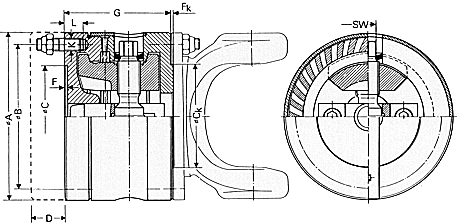

Design

with spiral serration for higher speeds

Connection 287/587/687
Connection 392 with face key

For hole distribution see data sheets of the corresponding cardan shaft.

Coupling size			330.10	330.20	330.30		330.40	330.50				330.55
Shaft connection			687.15	687.20	687.25	687.30	687.40	687.45	687.55	587.50	587.50	587.55	392.55
Shaft connection			287.10	687.20	687.35	687.40	687.45	687.60	687.65	587.50	587.50	587.55	392.55
Model		Nr.	000	003	003		003	000			001	000	001
	A	mm	100	130	150		180	225			225	250	250
	B	mm	84	101,5	130		155,5	196			196	218	218
	C 1)	mm	57	75	90		110	140			105	140	105
	CK 11)	mm	57	75	90		110	140			105	140	105
	D 2)	mm	20	38	40		40	45			45	45	45
	F	mm	2,5	2,5	3,5		4	5			5	6	6
	FK	mm	2,3 -0,2	2,3 -0,15	2,3 -0,2		2,3 -0,15	4 -0,2			4 -0,2	5 -0,2	5 -0,2
	G	mm	76	100	100		112	144			144	148	162
	I 3)	-	6	8	8		8	8			8	8	8
	K 4)	-	M8 x 18	M10 x 22	M12 x 25		M14 x 28	M16 x 35			M16 x 40	M18 x 40	M18 x 45
	L 10)	mm	10	11	14		20	18			18	21	21
	GK 12)	kg	4,7	7,5	10,6		16,4	34			36	40	49
Ta Nut		Nm	35	69	120		190	295			295	405	405
Extension 5)		Nr.	2365/13M	2365/17M	2365/19M		22M	24R			24R	27R	27R
Ta Spindle		Nm	30	45	80		100	190			190	220	220
Socket wrench 6)		Nr.	D 19 SW 13		D 19 SW 17			D 19 SW 22

1) Spigot H7
2) Disengaging movement for serration of the coupling
3) Number of stud bolts per flange
4) Dimensions of the bolt connections
Stud bolt DIN 938
Self locking hexagon nut DIN 980
5) Jaw or ring extension in accordance with GWB standard N 4.2.5
6) Gedore socket spanner set for tightening the spindle
7) Rahsol torquemeter
8) Force multiplier spanner x = 4 (TD 750)
9) Adjusting moment of the torque wrench 756 C = 238 Nm
10) Thread depth
11) Fit: h6 up to series 390, f8 for series 392
12) GK = Weight of coupling
Ta = Tightening torques of flange boltings and of the
threaded coupling-spindles

Torque wrench 7) Type	Torque range from to
756 B	20 Nm	100 Nm
756 C	80 Nm	300 Nm
756 D	280 Nm	760 Nm

For applications with speeds higher than 1000 rpm please contact our engineers
Other designs on request.

Operating instructions
Engaging and disengaging the coupling
The engaging and disengaging is done by operating the threaded spindle located in the inner part of the coupling. The spindle can be reached from two sides and be operated. The spindle is tightened by means of a socket wrench (see table).

Attention

Before engaging the coupling make shure that the coupling teeth are properly fitted.
The engagement direction is marked by arrows. The spindle may be tightened either clockwise or anti-clockwise.
The join with the coupling component falls back when disengaged.
Danger of injury!

In case of a subsequent installation of the quick release coupling the cardan shaft must be correspondingly shorter. The threaded spindles of the coupling are lubricated by the supplier with MoS2. We recommened relubricating from time to time.
