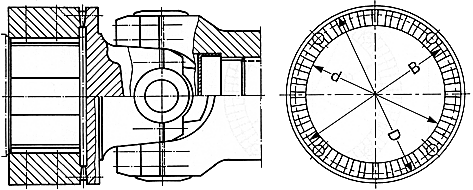

Flange connection with
Klingelnberg-serration
 Flank angle 25°
high transmission capacity
form locking
self-centring
 |
D
[mm]
|
d
[mm]
|
z
|
B
[mm]
|
i
|
95
|
65
|
16
|
84
|
4 X M 8
|
115
|
80
|
24
|
101,5
|
4 X M 10
|
145
|
110
|
24
|
130
|
4 X M 12
|
175
|
140
|
32
|
155,5
|
4 X M 16
|
215
|
175
|
48
|
196
|
4 X M 16
|
240
|
195
|
48
|
218
|
4 X M 18
|
275
|
220
|
48
|
245
|
4 X M 20
|
305
|
245
|
48
|
280
|
4 X M 20
|
340
|
280
|
72
|
310
|
4 X M 22
|
380
|
315
|
72
|
345
|
6 X M 24
|
425
|
355
|
96
|
385
|
6 X M 27
|
465
|
390
|
96
|
425
|
8 X M 30
|
535
|
455
|
96
|
492
|
8 X M 30
|
|
D
d
z
B
i |
Outside diameter
Inside diameter
Number of teeth
Bolt-hole circle diameter
Number and size of bolts
Bolt material: 10.9
|
|
Other larger diameters
on request |
|
|
