Calculation scheme of radial forces on connecting bearings

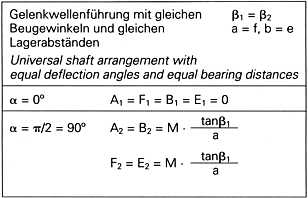

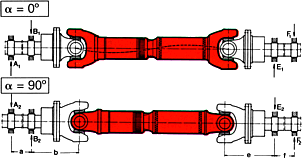

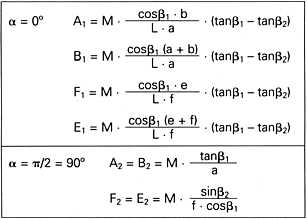

Universal shaft in Z-arrangement

Position 0° flange yoke right-angled to drawing plane
Position /2 flange yoke in drawing plane

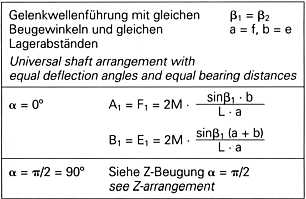

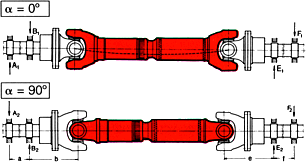

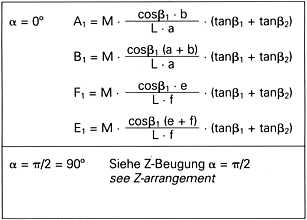

 Universal shaft in W-arrangement

Position 0° flange yoke right-angled to drawing plane
Position /2 flange yoke in drawing plane
