Drive Shafts


DANA Commercial Drive Shafts Catalogue

Data Sheets Standard variants
tt  back to Table of contents

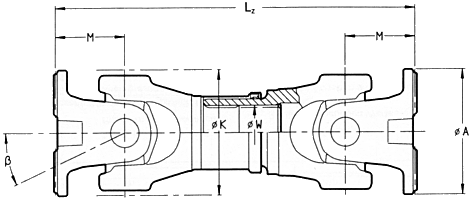

Short coupled cardan shaft with length compensation
Sleeve-Yoke-Design

2015

2020

2025

2030

2035

2040

2045

2055

2065
Tcs

kNm

2,4

3,5

5,0

6,5

10,0

14,0

17,0

25,0

35,0
Connection

-

DIN 100

DIN 120

XS 120

XS 120

XS 120

XS 150

XS 180

XS 180

XS 180
Flange-Ф

A

mm

100

120

120

120

120

155

180

180

180
Joint angle

β

°

25

25

25

25

25

25

25

25

25
Max.
Rotations-Ф

K

mm

90

98

113

127

144

160

174

178

206

M

mm

48

54

60

63,5

75

82

87

92

105

Lz max.

mm

280

317

335

380

444

466

491

517

574

La max.

mm

60

70

70

95

110

110

110

110

110

GW max.

kg

25,1

33

41

Lz min.

mm

245

274

293

314

379

401

431

467

514

La min.

mm

25

27

28

29

45

45

50

50

50

GW min.

kg

22,5

30,1

38,2
Spline-Ф

W

mm

36

40

45

48

54

62

68

78

88

Explanations:
TCS
Lz max.

La max.
Lz min.

La min.
GW
 Functional limit torque
Compressed length with
max. length compression
Max. length compensation
Compressed length with
min. length compression
Min. length compensation
Weight of short coupled cardan
shaft with Lc min. / Lc max.
Recommended connection
Companion flanges:
- DIN:
- SAE:
- XS: 		according to ISO 7646
according to ISO 7647
Cross serration
according to ISO 8667
Propshaft flange yokes:
- XS: Cross serration
according to ISO 12667
Please note:
All values given are nominal. Exact information should only be obtained from drawing.

Attention:
Not all DIN/SAE-flange-connection can transmit the function-limit-torque of the corresponding propshaft size by friction.
