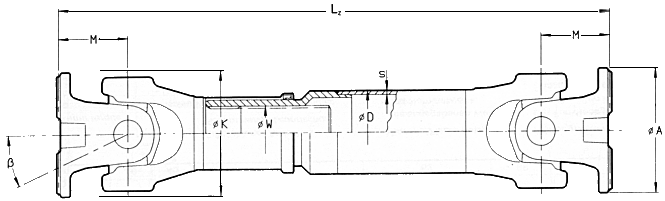

Cardan shaft with length compensation

			2015	2020	2025	2030	2035		2040		2045		2047	2050	2055	2060	2065
Tcs		kNm	2,4	3,5	5,0	6,5	10,0		14,0		17,0		19,0	21,0	25,0	30,0	35,0
Connection		-	DIN 100	DIN 120	XS 120	XS 120	XS 150		XS 180		XS 180		XS 180	XS 180	XS 180	XS 180	XS 180
Flange-Ф	A	mm	100	120	120	120	120	155	155	180	180		180	180	180	180	180
Joint angle	β	°	25	25	25	25	25	35	25	44	25	44	25	25	25	25	25
Max. Rotations-Ф	K	mm	90	98	113	127	144		160		174		174	180	178	196	206
	M	mm	48	54	60	63,5	75	88	82	102	87	108	87	85	92	100	105
	Lzmin	mm	346	379	438	475	542	667	546	693	579	729	579	576	616	635	676
	La	mm	60	70	100	110	110	180	110	180	110	180	110	110	110	110	110
Tube-Ф	D x s	mm	63,5 x 2,4	76,2 x 2,4	89 x 2,4	90 x 3	100 x 3	85 x 5	120 x 3	100 x4,5	120 x 4	110 x 5	120 x 5	120 x 5	120 x 6	130 x 6	142 x 6
	GW	kg	8,0	11,2	15,0	18,0	23,7	27,0	33,3	38,8	43,0	46,0	43,0	46,4	51,7	60,5	70,6
	GR	kg	3,6	4,4	5,1	6,4	7,17	9,9	8,65	10,6	11,44	12,9	14,18	14,18	16,86	18,34	20,12
Spline-Ф	W	mm	36	40	45	48	54		62		68		68	74	78	82	88

Explanations:

TCS
Lz
La
GW
GR

Functional limit torque
Compressed length
Sliding movement
Weight of 1 m-shaft
Weight of 1 m-tube

Recommended connection
Companion flanges:
- DIN: - SAE: - XS:	according to ISO 7646 according to ISO 7647 Cross serration according to ISO 8667
Propshaft flange yokes:
- XS:	Cross serration according to ISO 12667

Please note:
All values given are nominal. Exact information should only be obtained from drawing.
